Kingmax KM7023MDHV

Kingmax KM7023MDHV

Regular price $99.95 AUD
Regular price Sale price $99.95 AUD
Sale Sold out
Tax included.

Kingmax Servos at Supreme Hobbies and Toys

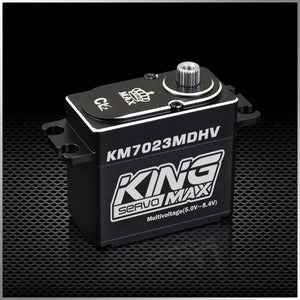

KM7023MDHV--73g 35kg.cm,digital,steel gears standard servo

Item: KM7023MDHV
Gear: Steel gear
Spline: Standard 25T
Motor: Coreless motor
Bearing: 2BB
Dead band: 2μs default
Waterproof: Yes
Operating Voltage: DC5.0~8.4V
Working frequency: 1520μs/330hz
Detail

FEATURE:
-- High performance programmable digital standard servo
-- High-precision steel gear

-- High quality coreless motor
-- Dual ball bearings
-- Full CNC aluminium hulls and structure
-- Waterproof
-- Good for CCPM
SPECIFICATIONS:

Operating Speed (5.0V): 0.14sec/60°

Operating Speed (6.0V): 0.12sec/60°

Operating Speed (7.4V): 0.10sec/60°

Operating Speed (8.4V): 0.09sec/60°

Stall Torque (5.0V): 26.0 kg.cm (361.14oz/in)

Stall Torque (6.0V): 30.0kg.cm (416.70oz/in)

Stall Torque (7.4V): 35.0 kg.cm (486.15oz/in)

Stall Torque (8.4V): 39.0kg.cm (541.71oz/in)

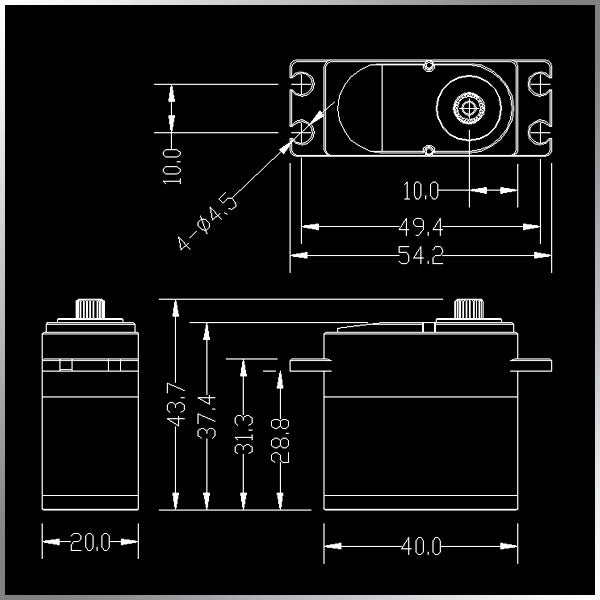

Dimensions:40X20X36.6mm/1.59X0.80X1.42in

Weight: 73.5g (2.59oz)

Connector/ Wire : 22AWG,JR265 mm (10.43in)

Packing Detail:

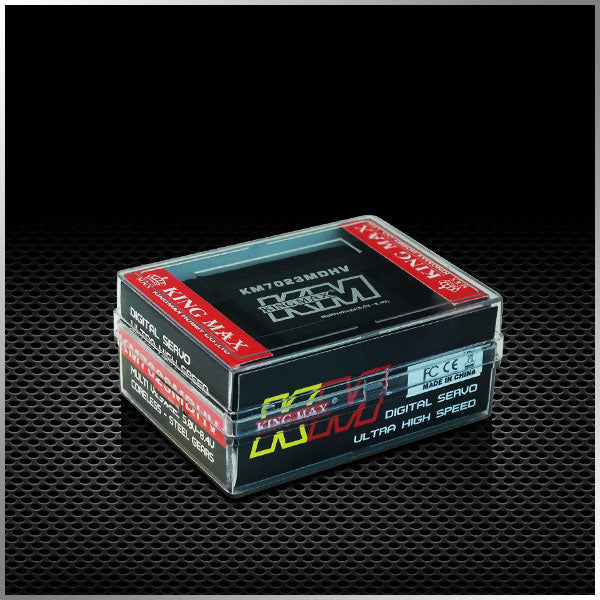

Transparent plastic box size: 83.5mmx63.5mmx37.5mm   weight: 125.5g
Carton box size: 43x26.5x20.5cm 100sets/1CTN   Gross weight:13kg
Optional Accessories:

KM7023MDHV-001:Offered accessories

KM7023MDHV-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear
