Kingmax BLS3009S

Kingmax BLS3009S

$139.95 AUD
$139.95 AUD
Sale Sold out
Tax included.

Shop for Kingmax BLS3009S online!

Supreme Hobbies & Toys

Kingmax Servos at Supreme Hobbies and Toys

BLS3009S--78g 30kg.cm,digital,metal gears standard servos


Item： BLS3009S
Gear： Steel gear
Spline： Standard 25T
Motor： Brushless motor
Bearing： 2BB
Dead band： 2μs default
Waterproof： Yes
Operating Voltage： DC5.0~8.4V
Rated working voltage： DC 7.4V
Working frequency： 1520μs/330hz
Working angle： ±58°@900us-2100us
Working temperature： -10℃~+50℃
Storage temperature： -20℃~+60℃
Detail



FEATURE:

-High performance, standard,Multivoltage digital servo

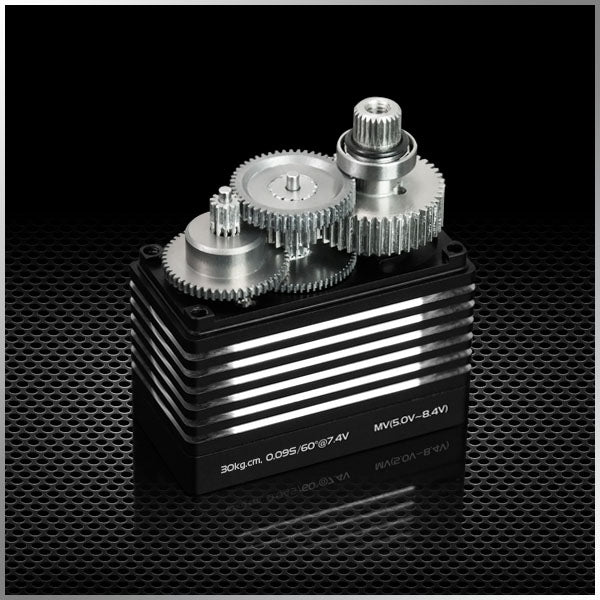

-High-precision steel gear

-Long-life potentiometer

-Full CNC aluminium case

-High quality brushless motor

-Dual ball bearing

-Waterproof

-Suit for 28-50CC gas engine, 1/5 car

SPECIFICATIONS:
Operating Speed (5.0V): 0.13sec/60 degrees

Operating Speed (6.0V): 0.11sec/60 degrees

Operating Speed (7.4V): 0.09sec/60 degrees
Operating Speed (8.4V): 0.08sec/60 degrees
Stall Torque (5.0V): 24.7kg.cm (343.08oz/in)

Stall Torque (6.0V): 26.8kg.cm (372.25oz/in)

Stall Torque (7.4V): 30kg.cm (416.7oz/in)
Stall Torque (8.4V): 34kg.cm (472.26oz/in)

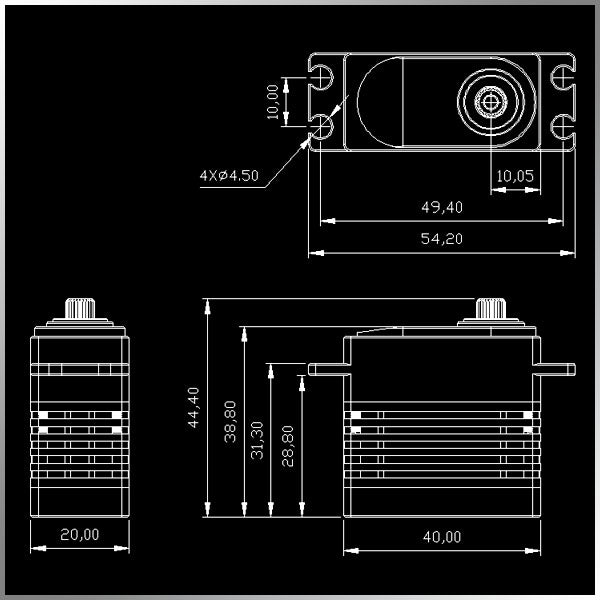

Dimensions: 40X20X40.9mm /1.56X0.78X1.6in
Weight:78g (2.75oz)
Connector Wire Length: 300mm (11.8in)

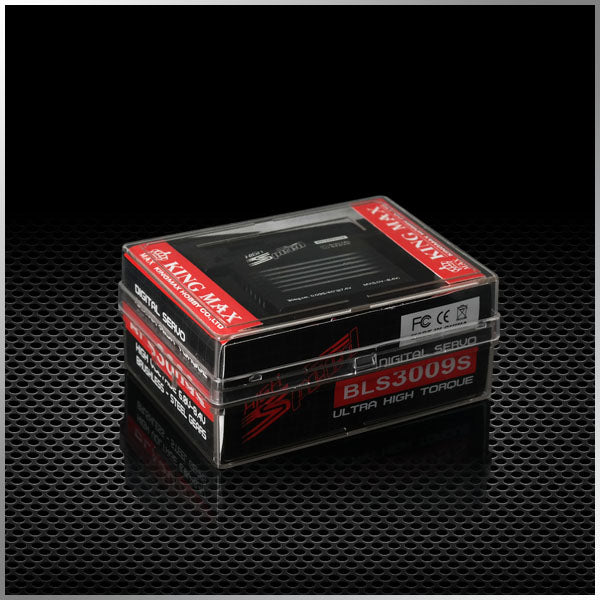

Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm   weight: 130g
Carton box   size: 43x26.5x20.5cm   100sets/1CTN   Gross weight:13.5kg
Optional Accessories:

BLS3009S-001:Offered accessories

BLS3009S-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
