BLS1506L Kingmax Lowprofile

BLS1506L Kingmax Lowprofile

Regular price $139.95 AUD
Regular price Sale price $139.95 AUD
Sale Sold out
Tax included.

Kingmax Servos at Supreme Hobbies and Toys

BLS1506L--50g,digital,metal gears low profile servos

Item: BLS1506L
Gear: Full metal
Spline: Standard 25T
Motor: Brushless motor
Bearing: 2BB
Dead band: 2μs default
Waterproof: Yes
Operating Voltage: DC5.0~8.4V
Rated working voltage: DC 7.4V
Working frequency: 1520μs/330hz
Working angle: ±58°@900us-2100us
Working temperature: -10℃~+50℃
Storage temperature: -20℃~+60℃


-High performance, low profile, Multivoltage digital servo

-High-precision 7075 aluminium gear

-Long-life potentiometer

-Full CNC aluminium case

-High quality brushless motor

-Dual ball bearing


-SSR mode available

-Suit for 1/8, 1/10 racing car、electric drift car

Operating Speed (5.0V): 0.09sec/60 degrees

Operating Speed (6.0V): 0.07sec/60 degrees

Operating Speed (7.4V): 0.06sec/60 degrees
Operating Speed (8.4V): 0.05sec/60 degrees
Stall Torque (5.0V): (145.85oz/in)

Stall Torque (6.0V): (175oz/in)

Stall Torque (7.4V): (208.35oz/in)
Stall Torque (8.4V): (247.24oz/in)

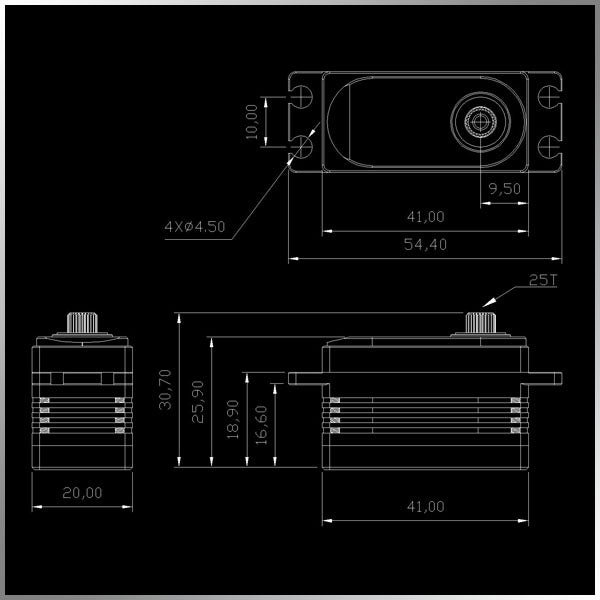

Dimensions: 41.1X20X26.5mm /1.6X0.78X1.03in
Weight: 50g (1.76oz)
Connector Wire Length:190mm (7.41in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm   weight: 100g
Carton box   size: 43x26.5x20.5cm   100sets/1CTN   Gross weight:10.5kg
Optional Accessories:

BLS1506L-001:Offered accessories

BLS1506L-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
