Kingmax BLS13015

Kingmax BLS13015

Regular price $359.95 AUD
Regular price Sale price $359.95 AUD
Sale Sold out
Tax included.

Kingmax Servos at Supreme Hobbies and Toys

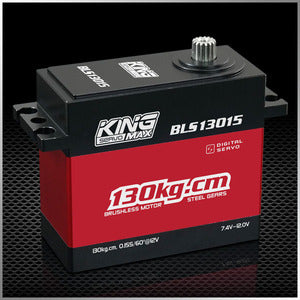

BLS13015--248g 130kg.cm,digital,steel gear big-sized servos

Item: BLS13015
Gear: Steel gear
Spline: Exclusive
Motor: Brushless motor
Bearing: 2BB
Dead band: 4μs default
Waterproof: Yes
Operating Voltage: DC7.4~12.0V
Working frequency: 1520μs/330hz
Detail

FEATURE:

-- High performance, digital high torque servo

-- High-precision steel gears

-- Full CNC aluminum hulls and structure

-- High quality brushless motor

-- Dual ball bearings

-- Waterproof

SPECIFICATIONS:

Operating Speed(7.4V):0.25sec/60 degrees

Operating Speed(8.4V):0.22sec/60 degrees

Operating Speed(12.0V):0.15sec/60 degrees

Stall Torque(7.4V):88.0kg.cm(1222.32oz/in)

Stall Torque(8.4V):98.0kg.cm(1361.22oz/in)

Stall Torque(12.0V):130.0kg.cm(1805.70oz/in)

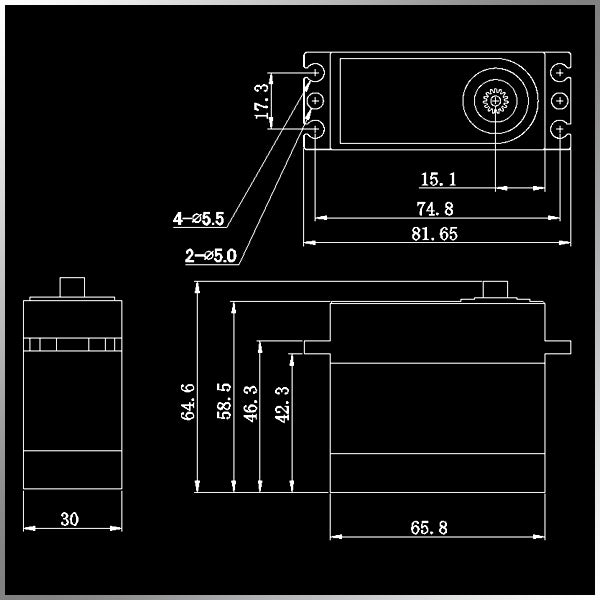

Dimensions:65.8X30X58.5mm/2.56X1.17X2.28in

Weight:248g(8.74oz)

Connector Wire Length:300mm(11.70in)



Packing Detail:

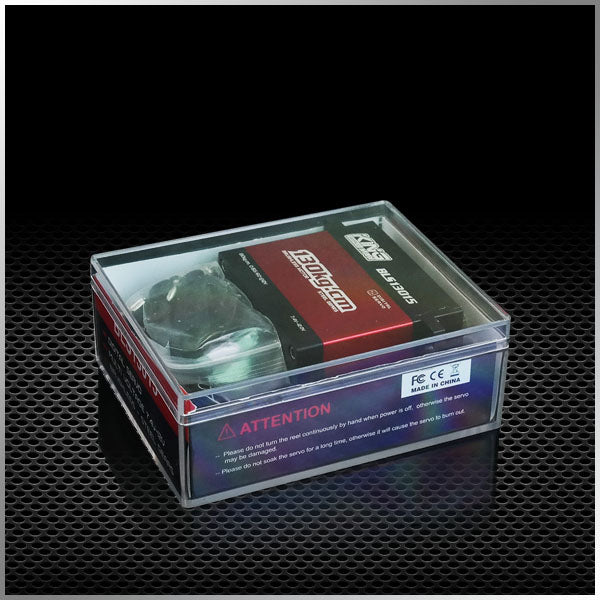

Transparent plastic box size:110mmx90mmx40.4mm   weight: 350g

Carton box   size:43x26.5x20.5cm   50sets/1CTN   Gross weight:18kg

Optional Accessories:

BLS13015-001:Offered accessories

BLS13015-002:1set of gearset,including gears,shafts and 2 ball bearings(not include motor gear
