PATENT PRODUCTS

COUNTERFEITING WILL BE HELD LIABLE

PETENT NO. ZL201822045200.5

FEATURE:

-- High performance, digital Multivoltage mini servo

-- Patent gear chain design,more stable and durable

-- High-precision metal gears with hard anodizing

-- Full CNC aluminium hulls and structure

-- High quality coreless motor

-- Dual ball bearings

SPECIFICATIONS:

Operating Speed (5.0V): 0.24sec/60 degrees

Operating Speed (6.0V): 0.20sec/60 degrees

Operating Speed (7.4V): 0.15sec/60 degrees

Operating Speed (8.4V): 0.14sec/60 degrees

Stall Torque (5.0V): 8.7kg.cm (120.84oz/in)

Stall Torque (6.0V): 10.5kg.cm (145.84oz/in)

Stall Torque (7.4V): 15.0kg.cm (208.35oz/in)

Stall Torque (8.4V): 17.0kg.cm (236.13oz/in)

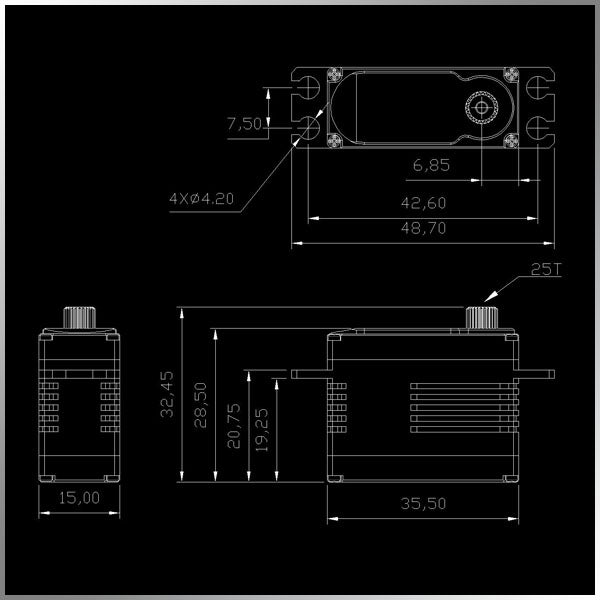

Dimensions: 35.5*15*28.5mm /1.38*0.58*1.11in

Weight: 34g(1.2oz)

Connector Wire Length: JR265 mm (10.33in)

Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm   weight: 70g
Carton box   size: 43x26.5x20.5cm   100sets/1CTN   Gross weight:7.45kg
Optional Accessories:

CLS1515M-001:Offered accessories

CLS1515M-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
